Exposure Starter Kit

Key Benefits

• Consistent UV Exposure
• Sharper Detail
• No Light Gaps
• Easy to Use
• Faster Workflow

Expose screens quickly without expensive equipment.

The Screen Print Direct Exposure Starter Kit gives beginner screen printers everything needed to expose a stencil using a simple, proven setup. By combining a UV LED Exposure Unit, an acrylic sheet, and compression foam pad, this system creates the tight contact needed for clean stencil exposure with minimal effort.

Perfect for home printers, small shops, and anyone getting started with screen printing.

Kit Includes

• (1) 30W UV LED Exposure Unit
• (1) 18" x 24" Acrylic Sheet
• (1) 17" x 21" Foam Pad
• (1) Exposure Calculator

**ACRYLIC SHEET AND FOAM SIZE DESIGNED FOR 20" x 24" SCREEN**

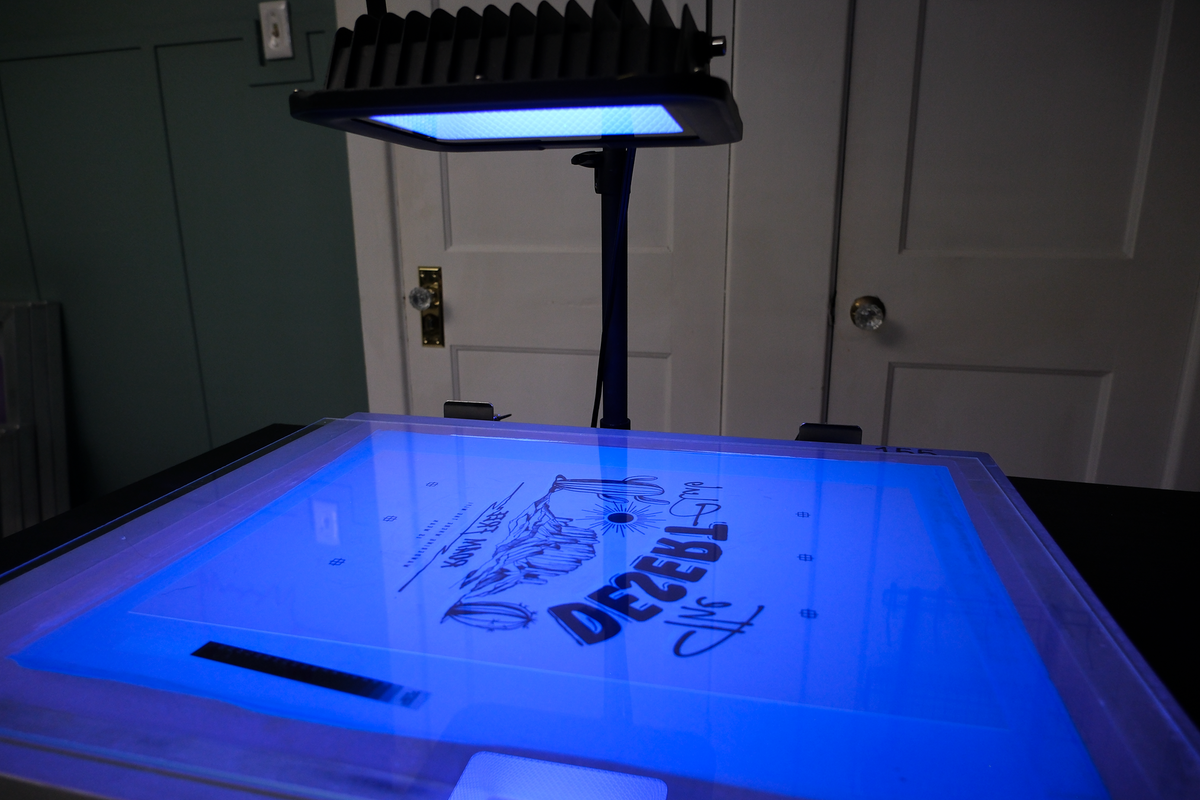

How It Works

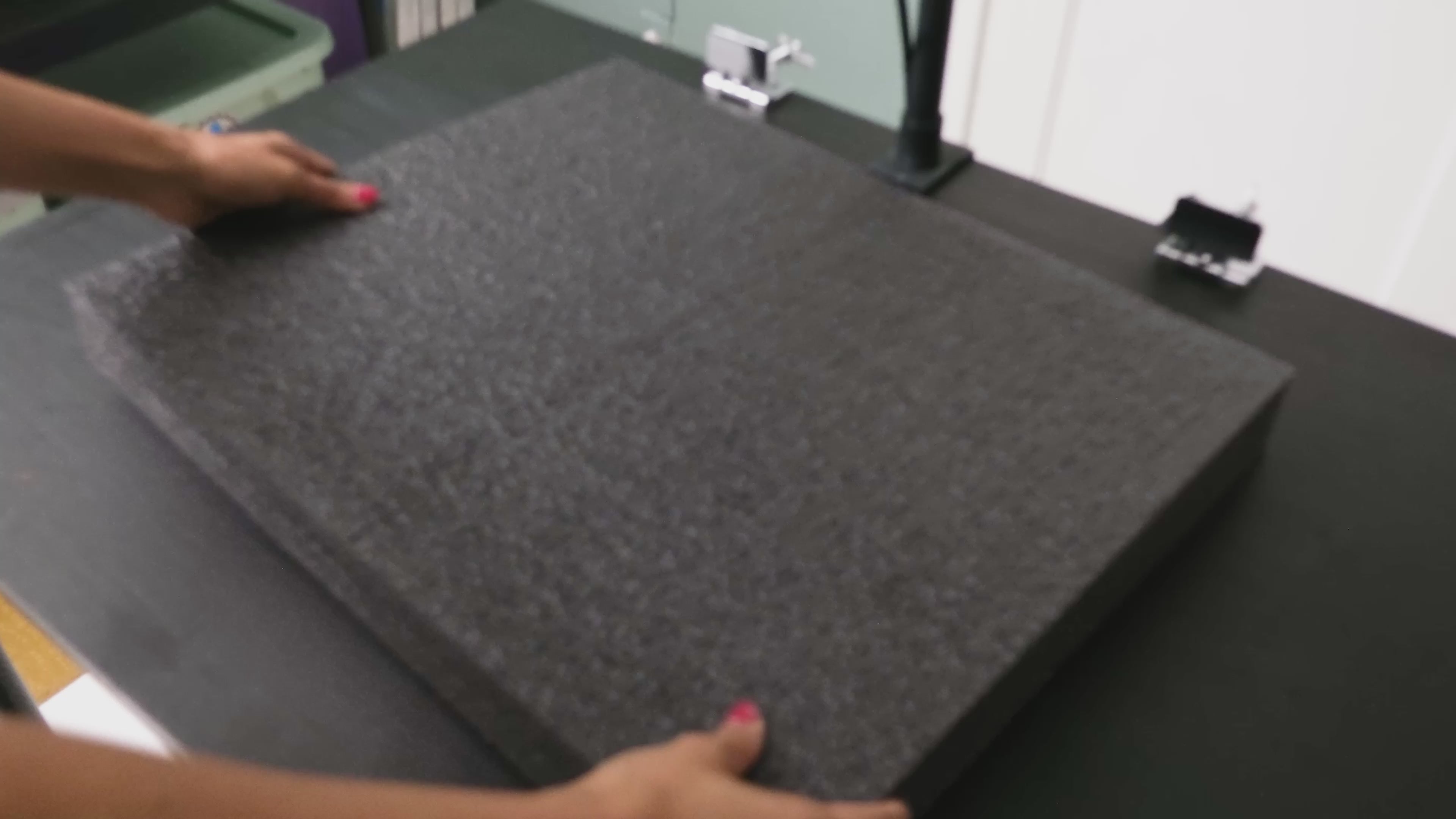

1. Place the foam pad under your UV LED Exposure Unit.

2. Set the screen on the foam with the print side down so the foam seats into 20" x 24" frame.

3. Position your film positive on the coated screen.

4. Place the acrylic sheet on top of the film to apply even pressure to the entire surface.

5. Turn on the UV LED Exposure Unit to expose the screen.



Individual Product Details

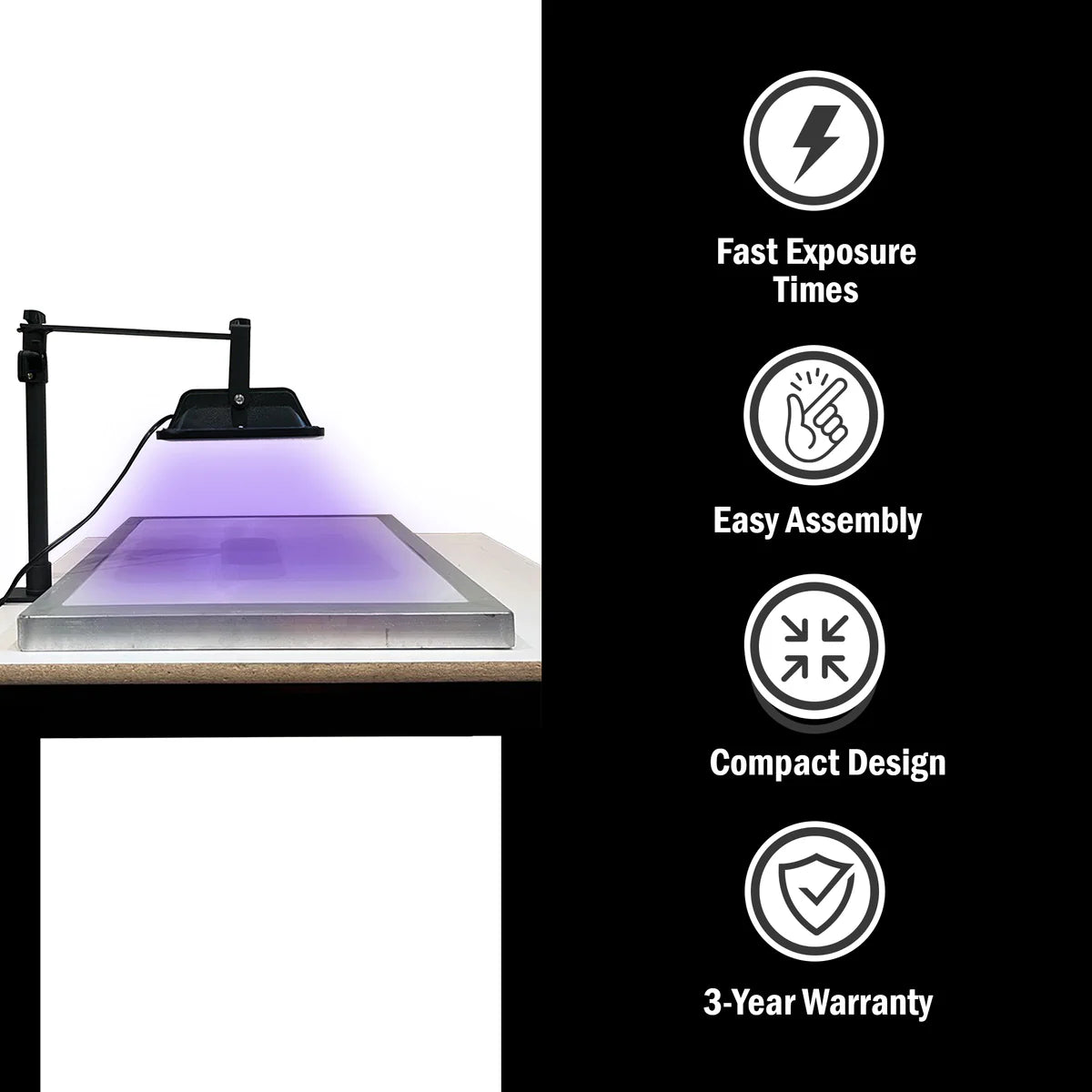

UV LED Exposure Unit - Sold Separately Here.

• Assemble in 5 minutes or less with a simple set-up
• Exposure anywhere – portable mount
• Adjustable stand height (14-23inches)
• Compact design takes up minimal floor space/table space
• Easy on/off switch
• 3-year warranty

Technical Details

• Input Voltage: AC100-277V
• Light Size: 214mm x 156mm x 53 mm
• Beam angle: 120
• Wavelength: 395nm – 400 nm
• This unit is not waterproof

UV LED Exposure Unit Assembly Instructions
Click Here

18" x 24" Acrylic Sheet - Sold Separately Here.

• 18" x 24" x 1/8th"
• Maximum UV Light Transfer
• Improves Stencil Detail & Edge Sharpness
• Keeps Film Positives Flat & Secure
• Prevents Shifting During Exposure
• Durable & Reusable Material
• Works with most DIY Exposure setups

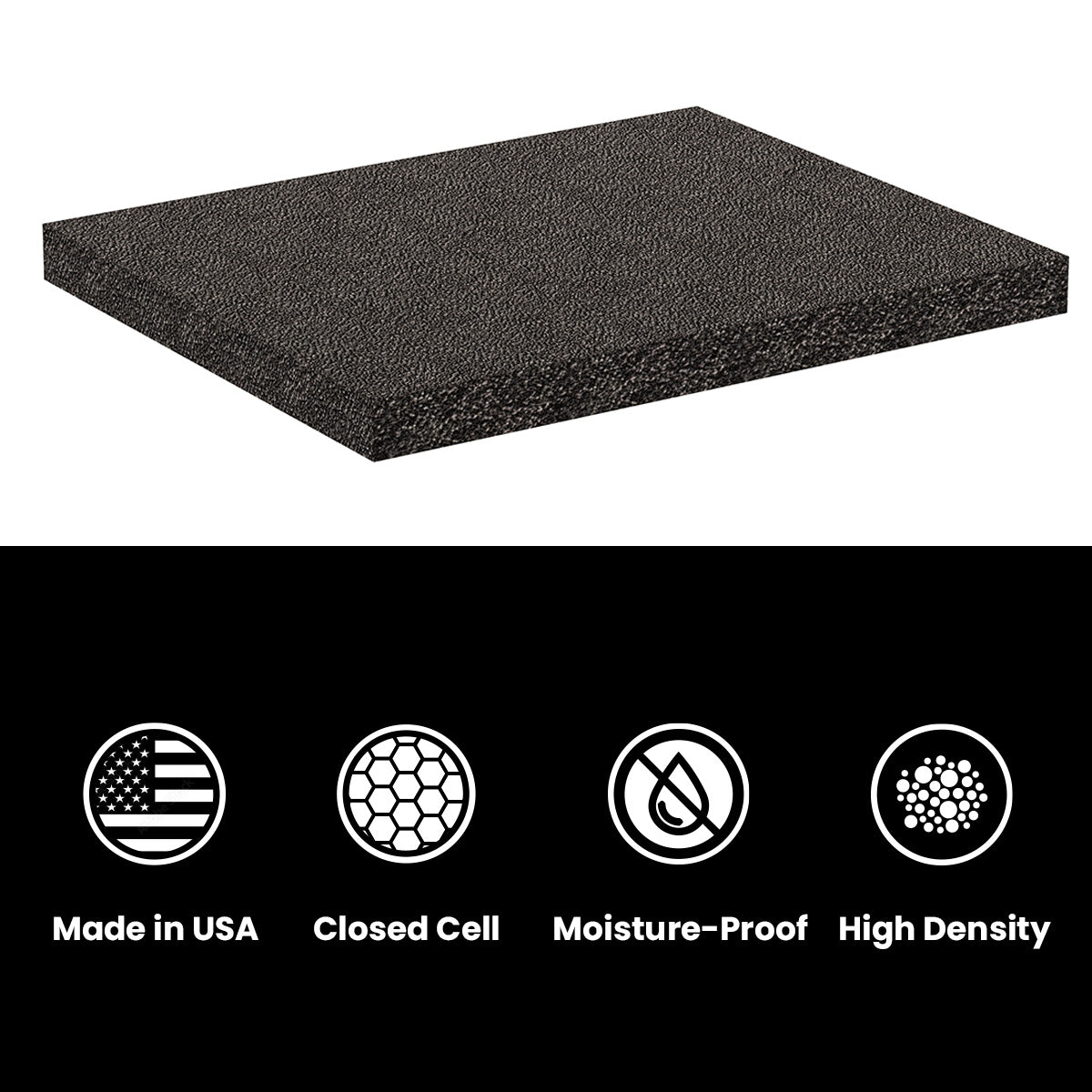

2" Thick Closed-Cell Foam - Sold Separately Here.

• 17" x 21" x 2"
• Fits inside the screen frame during exposure
• Pushes mesh up for tight film contact
• Helps block stray light for a cleaner stencil
• Won't collapse or absorb moisture
• Applies Even Pressure Across Screen

• Reduces Exposure Errors
• Works with Most Exposure Setups

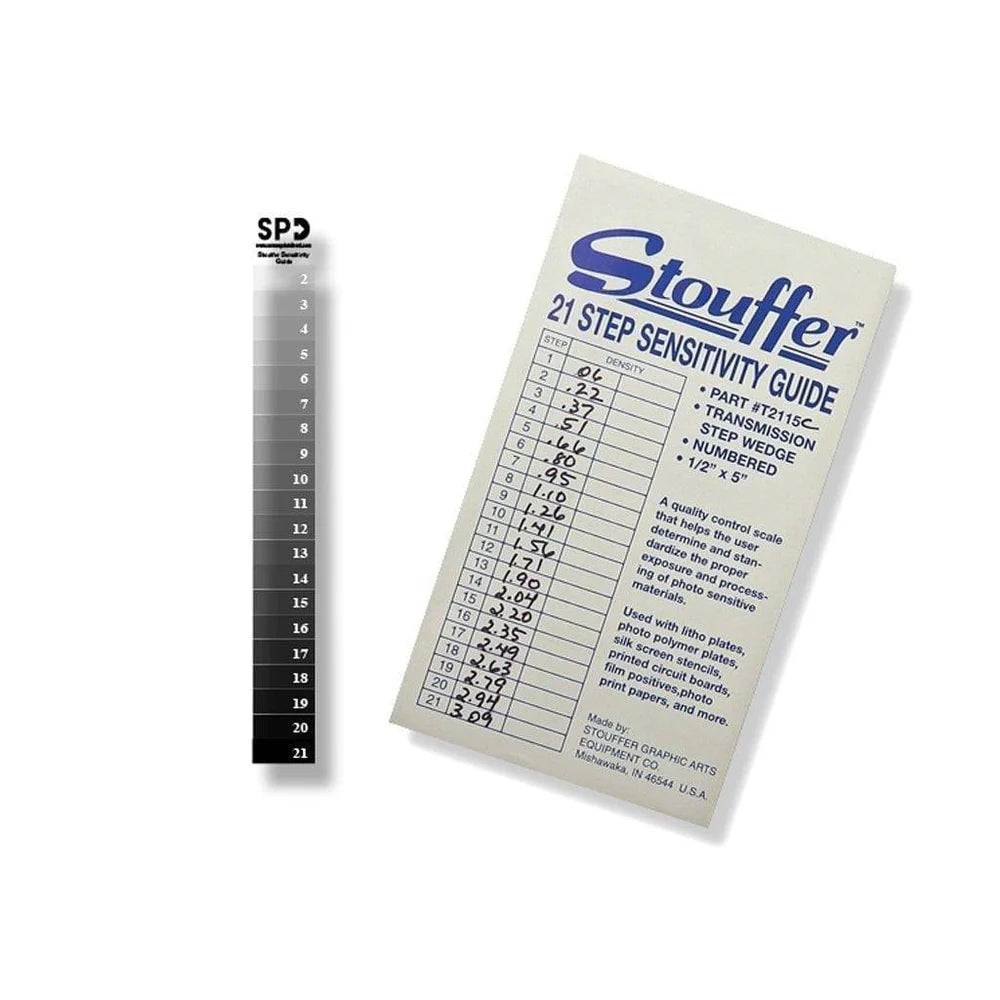

21 Step Wedge Exposure Calculator - Sold Separately Here.

• Eliminates guesswork by helping dial in accurate exposure times
• 21-step wedge design shows exactly how your emulsion is exposing

• Prevents underexposure and overexposure issues that ruin screens
• Compact size fits directly on your screen during exposure without interference
• Perfect for beginners to quickly achieve consistent, professional results


To learn more about exposing your screens with our 30W UV LED Exposure Unit, check out our blog post - Ecotex® Emulsion Exposure Times.
